The name says it all: RaceChip Ultimate
Tap into your car’s full power potential
If you’re looking for the best way to activate your vehicle's power reserves, then all roads lead to the Ultimate chip. Enjoy maximum acceleration, mid-range and response in your car.
With a processor that's perfectly tuned to the demands of modern engines, premium components, and a comprehensive service and safety package that includes a two-year engine warranty, Ultimate offers the ideal combination for a one-of-a-kind driving experience. Whether you’re stringing bends together on a country road, accelerating away from a traffic light or cruising along the motorway, you'll feel the difference and love the feeling.
A revolution in chip tuning
Our Smartphone Connect Feature

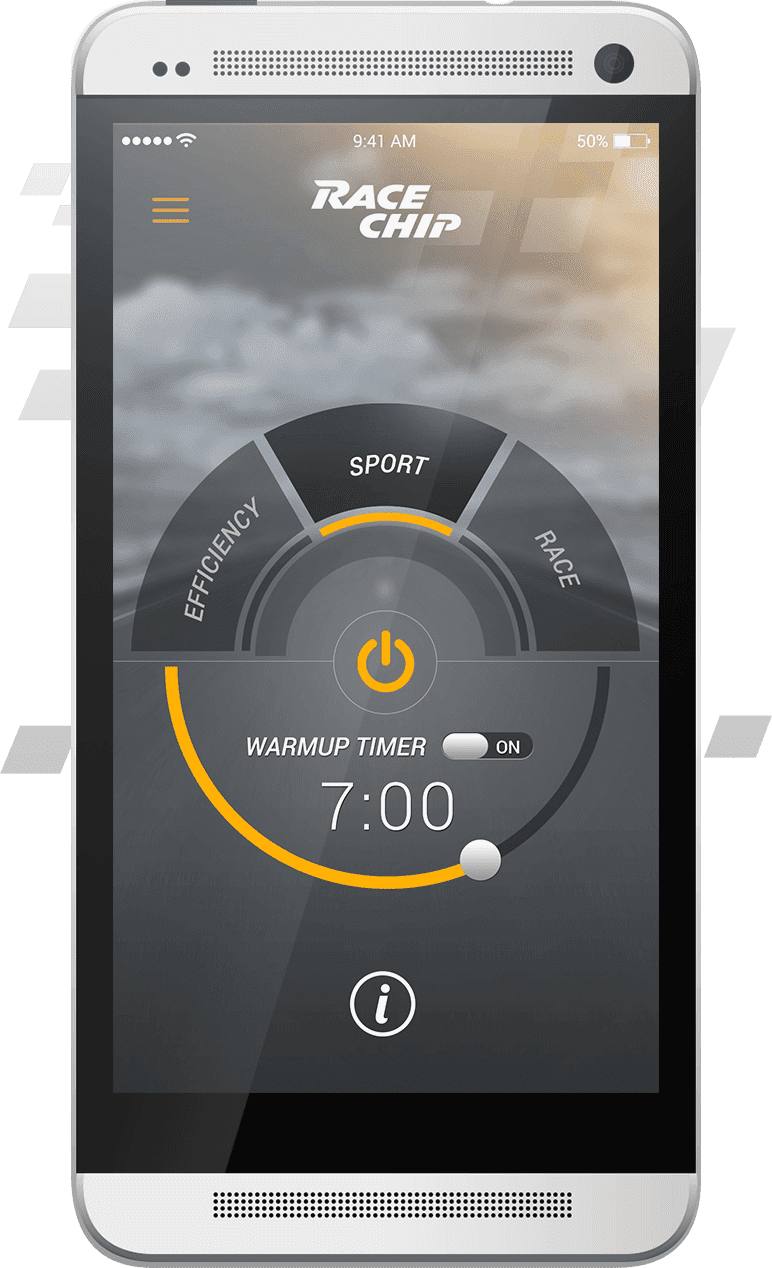

Experience a whole new level of chip tuning with RaceChip Ultimate Connect. Our latest innovation offers you the option of switching between several performance optimization modes via your smartphone running the RaceChip app:
- 3 performance modes fine-tuned to your engine
- Warm-up timer to protect your engine
- Automatic software updates
- Availability of fully customized performance modes via download
- Individual vehicle profile
- Integrated service functions
Maximum benefit for you
- +30% more
power and torque
- Simple installation

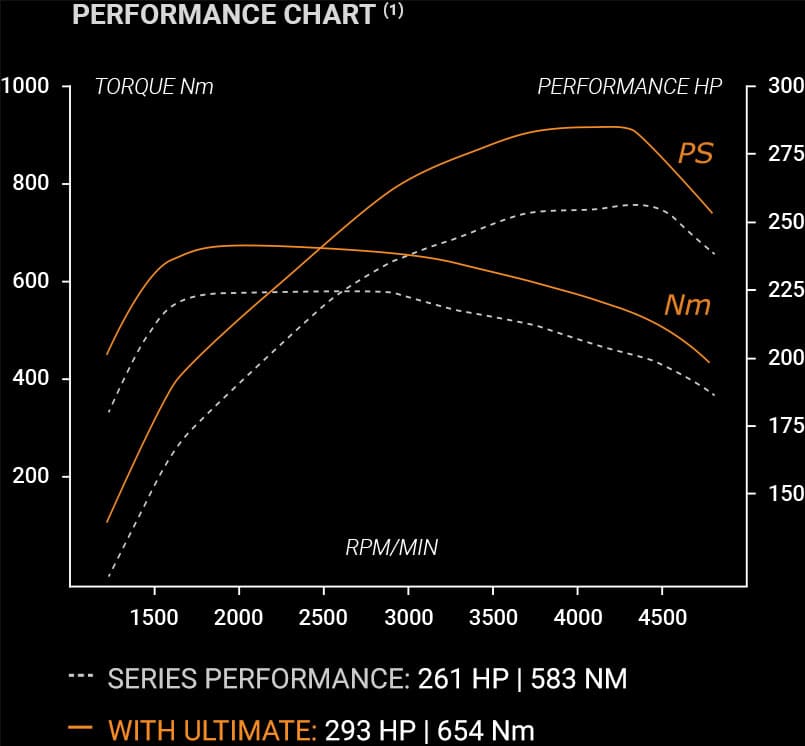

+30% power and torque
The tuning software in the Ultimate is specially designed for your car to optimize your engine's electronic signals and make the most of your car’s power reserves. You'll enjoy more power, greater dynamics and better mid-range acceleration. It’s like driving a different car.
Better fuel economy
The Ultimate increases power while helping you save fuel and money. Savings up to 15% are possible. Torque optimization is the key to this success. The equation is pretty simple: more torque = earlier upshifts = less fuel consumption = lower costs.
Control via Smartphone
Experience a whole new level of chip tuning with RaceChip Ultimate Connect. With this innovation from RaceChip you can activate various performance optimization modes via your smartphone.
Adjustable performance parameters
We supply the Ultimate with optimization software that is specially tailored to your engine. But if you want to make fine adjustments, the Ultimate lets you manually adjust the exact characteristics of the increased performance delivery so that it perfectly suits your needs.
2-year engine warranty
We have 100% confidence in the quality of the RaceChip Ultimate. Your benefit is the RaceChip engine warranty, which covers all the major engine and powertrain components, so you’ll always be on the safe side.
5-year product warranty
We use only premium components in the Ultimate. The entire circuit board is covered in nano-coating and the processor was specially designed for the operating conditions found in an engine bay. The housing is heat-resistant, and the connection is made with a high-grade FCI plug. The Ultimate embodies the very highest quality, which is why we offer a 5-year product warranty.
Simple installation and removal
You don't have to be an expert to install the Ultimate. Easy do-it-yourself installation in just a few minutes – that's the RaceChip Plug&Drive promise. It lets you use the most sophisticated technology with the utmost ease.
With Ultimate, you'll be driving with an award-winning, modern chip tuning product.
Optimum performance with maximum safety
The comprehensive RaceChip safety package
Warranty for performance chip and engine+
You'll receive a 2-year engine warranty with the Ultimate that covers all major engine and power train components. The chip comes with an additional 5-year product warranty.
Engine Protect System Plus+
Our optimization software ensures that the RaceChip works only within your engine’s safe rev range. When you get close to the red line or go into the red, the chip automatically shuts down so that your engine is running in stock condition again. As soon as the revs drop, the chip turns on again. Our Engine Protect System is that simple and safe. And it works in addition to any existing protection systems installed by the manufacturer.
The Ultimate also gives you our Engine Protect System Plus. The sophisticated parameters integrated into the Ultimate are compared again with the engine’s set limits to ensure that they are not exceeded.
Premium hardware components+
We use only highest quality components in our Ultimate chip.
The entire circuit board is covered in nano-coating and the processor was specially designed for the operating conditions found in an engine bay. The housing is heat-resistant, and the connection is made with a high-grade FCI plug.
- Latest version of the vehicle-specific optimization software
- Performance parameters can be controlled via RaceChip App on a Smartphone
- Engine Protect system
- 48 Mhz processor
- Professional automobile safety plug
- PCB with nano water protection
- L: 11,5 × B: 10,0 × H: 4,0
PreparationFirst, open the bonnet and remove the engine cover as shown in the example for the VW Passat (B8) 2.0 TDI with 110kW.
Locating the connection in the engine bayOnce the wiring harness is connected, the entire setup should look like the image below. The RaceChip wiring harness is connected to the sensors at the points marked A and B.
Connection to the common rail sensor (A)First, the connection to the common rail sensor (A) needs to be made. Pull out the plug by its sensor. Note: only pull on the plug, never the cable.
Common rail sensor (A)Here you can see the disconnected plug of the common rail sensor (A), as well as the corresponding mating part on the wiring harness of your chip.
Connecting the wiring harnessNow connect the disconnected plug (A) to the corresponding socket on the wiring harness. Make sure that the plugs have engaged.
Connection to the common rail sensor (A)Connect the second plug of this wiring harness arm to the common rail sensor (A) so that it engages.
Connection to the turbo-boost pressure sensor (B)Next, the connection to the turbo-boost pressure sensor (B) needs to be made. Pull out the plug by its sensor.
Turbo-boost pressure sensor (B)The image above shows the disconnected plug of the turbo-boost pressure sensor (B), as well as the section of the RaceChip wiring harness that has not yet been used.
Connecting the wiring harnessConnect the disconnected plug (B) to the corresponding socket on the RaceChip wiring harness. Ensure that the plugs engage properly.
Connection to the turbo-boost pressure sensor (B)Connect the remaining plug on the wiring harness to turbo-boost pressure sensor (B). Push it into the mating piece so that it engages.
Connecting the RaceChip UltimateYour engine is about to get more power. Connect the RaceChip Ultimate to the FCI connector of the wiring harness.
Final stepsSecure the cable and the Ultimate at a suitable point in your engine bay and then fasten the cover. All done! Now have fun driving!
